Measurements

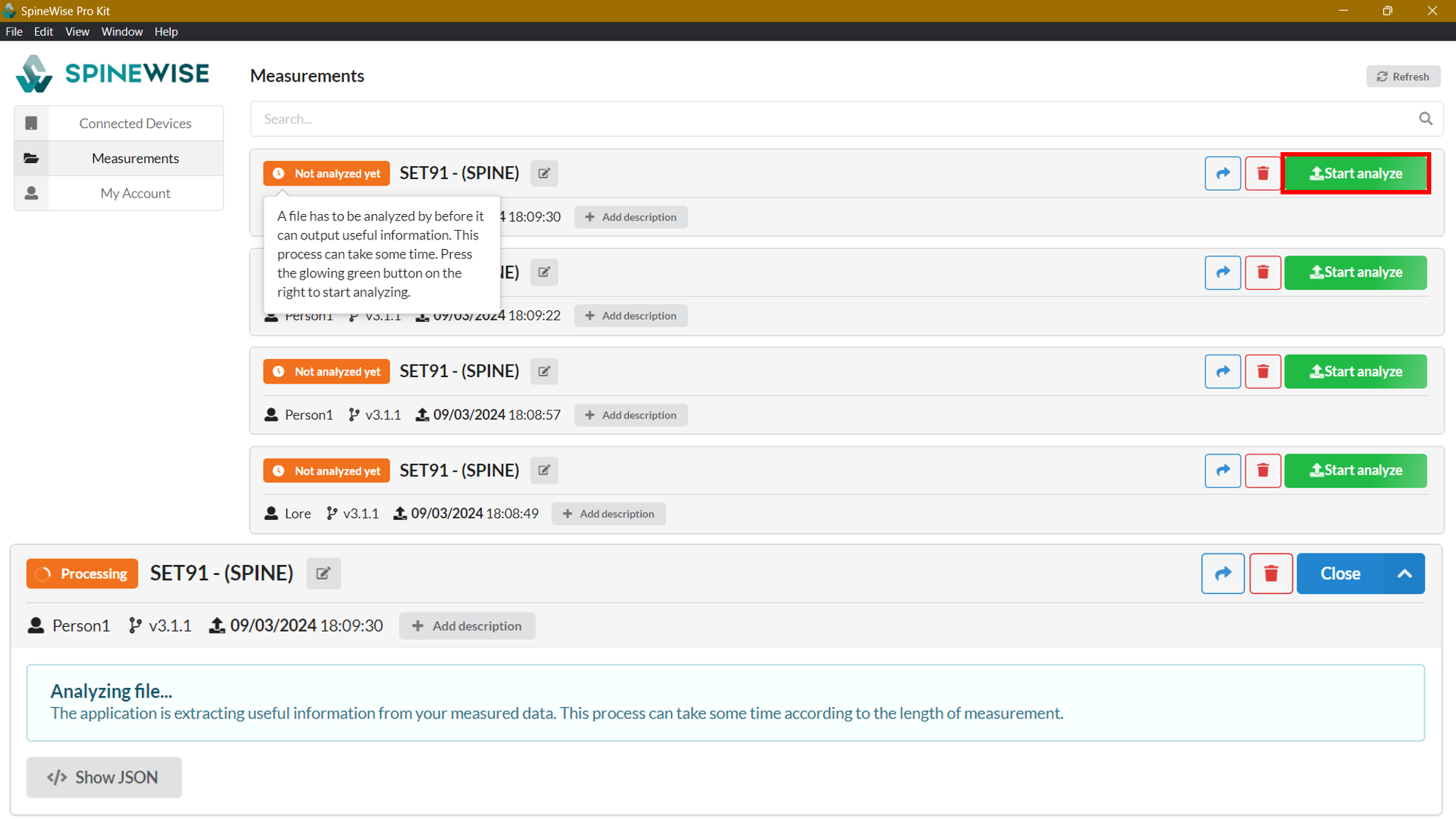

In measurements, you can view the captured measurements (each measurement is separated by a calibration). The name of the set is mentioned, and below, a description can be added. Both of these can be customized according to your preferences. Furthermore, you can see the time when the measurement was uploaded to the platform.

You can choose for each file separately if you want to process it by clicking the button 'Start analyze'. The analysis can take 30 to 60 seconds and occasionally 5 extra minutes when starting the application.

Measurements

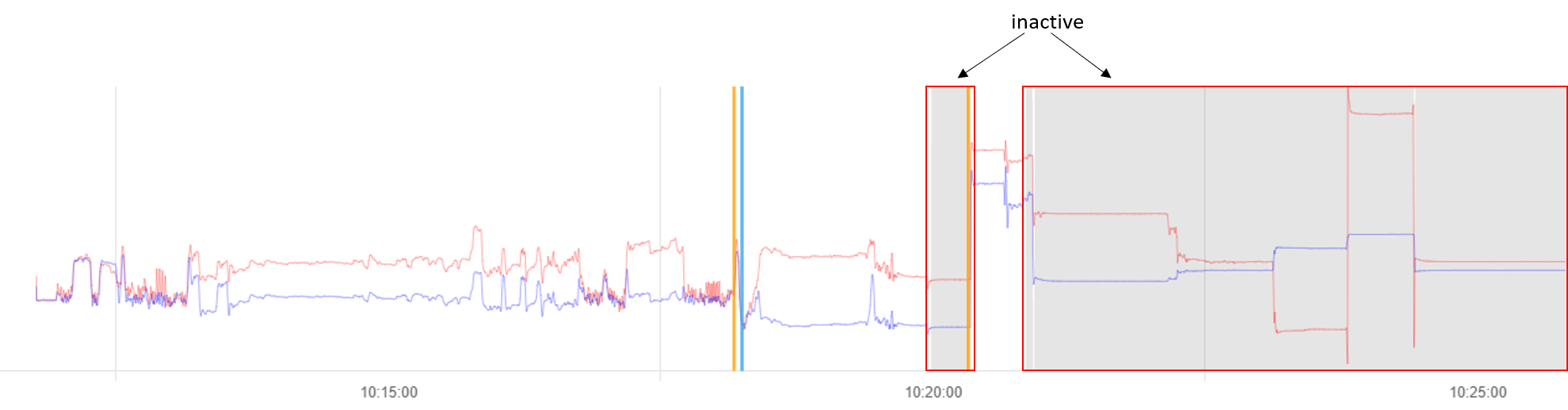

If the wearable is in an unnatural position (e.g. lying flat), the data will be marked as inactive. There are no data charges for inactive data. (Beware: this model is not perfect!). These zones are indicated in gray on the timeline. Inactive

To find out what exactly the different parameters measure, you can check Measured parameters. When you press 'Details' for a measurement, you can see all parameters with the recorded values.

Export as PDF File

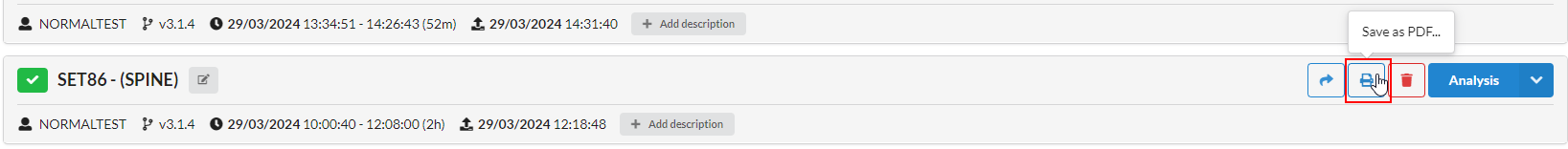

It is possible to create a PDF export of an analysis. Ensure that the analysis is open and press the "save" button.

PDF Export Button

Chart creation and navigation

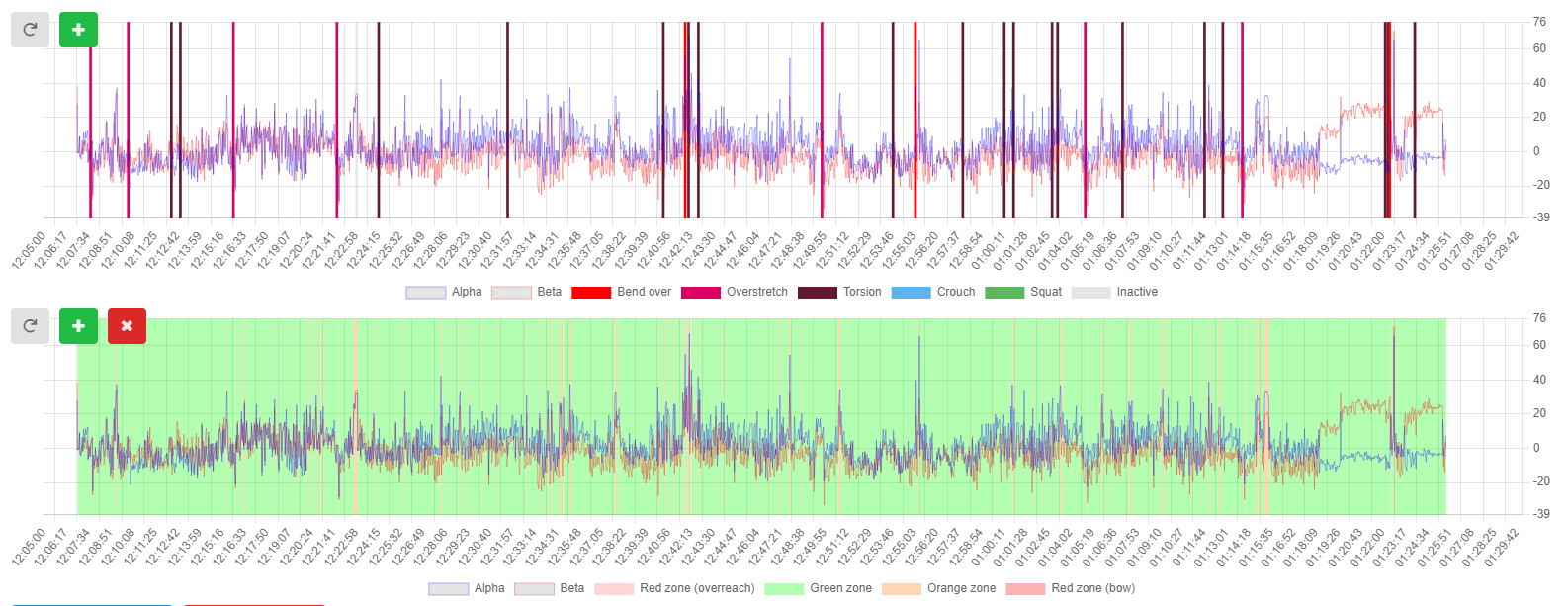

Per default, two charts are available of the created measurement:

Default charts

Both charts have both the alpha angle and the beta angle:

  • One of them also identifies the movements: bends, overreaches, torsions, squats,...
  • The other does not show the movements, but colors the chart based on the zone (based on alpha). It seperates the: Green Zone, Orange Zone, Red Zone and Overreach Zone

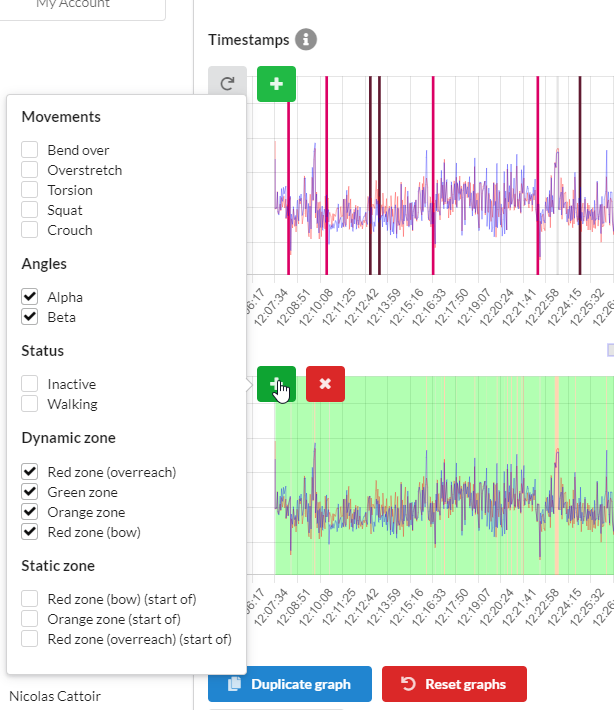

There are also options available to create additional charts, choose yourself what to visualize on the charts, or reset them to the default.

Chart options

To zoom in or out the chart on the time-scale (x-axis), you can do so by pressing CTRL + Mouse wheel up or down. To zoom in or out the chart on the angle-scale (y-axis), you can do so by pressing CTRL + Shift + Mouse wheel up or down.

Chart filtering

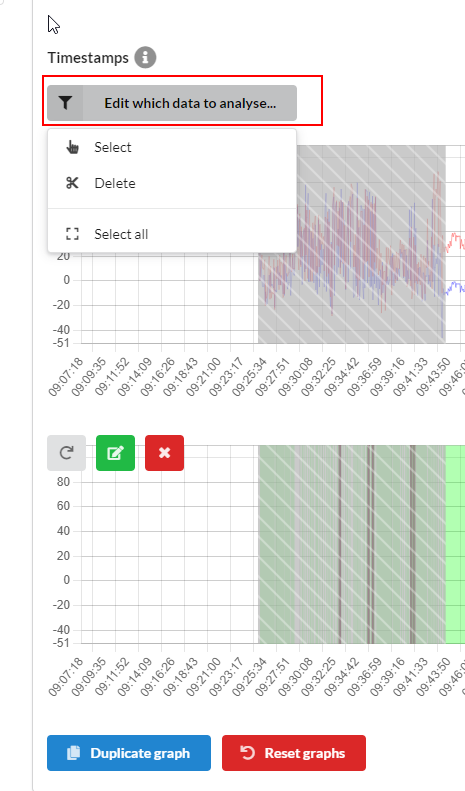

We have added the option to either remove or select specific areas of the measure to analyse. All KPIs will be recalculated based on the new selection. This selection will also persist during PDF exports or when the application is restarted. It's always possible to reset the view to have all data by selection the "Select all" option. Note that by default the "selection" is enabled.

Chart selection options
Chart selection

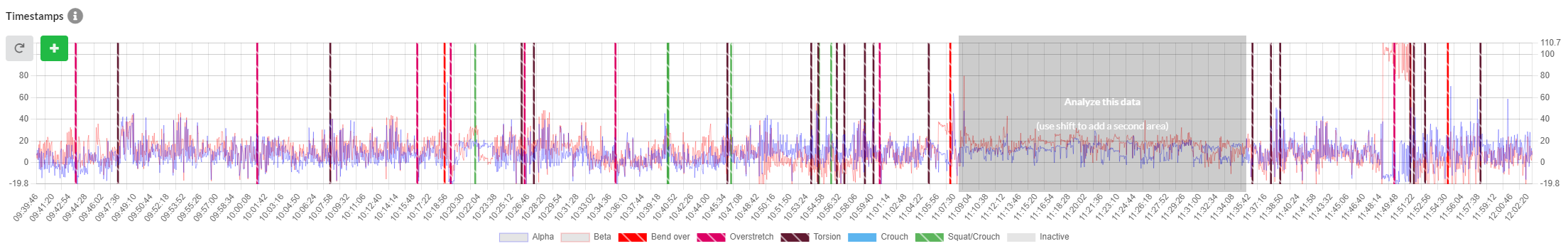

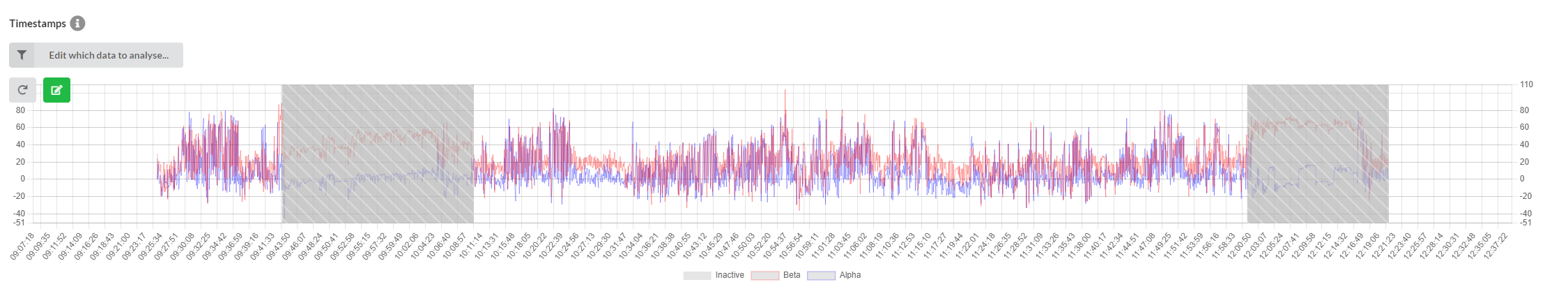

The currently removed areas will be marked in graw, which is the same color as the algorithmic-determined inactive state (which is always filtered/excluded).

Chart selection

Forward to SpineWise Portal

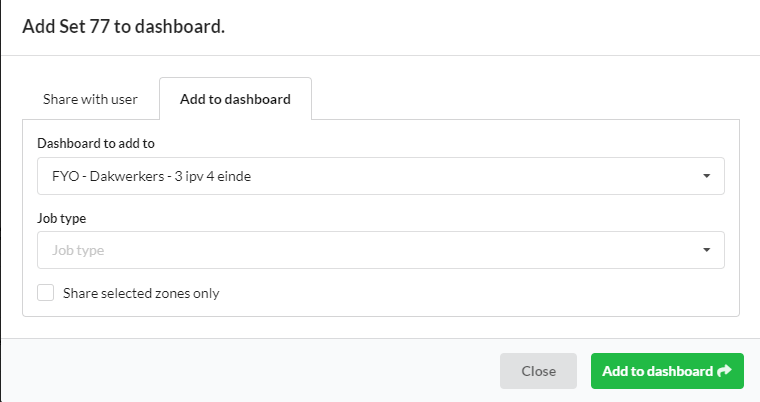

We have added the option to ingest a dataset into our portal (https://portal.spinewise.be) to aggregate measurements of multiple subjects and/or multiple days. This could allow you to see larger trends and differences between groups of subjects.

Chart selection
Chart selection

This is a premium feature. For more information, send an email to info@spinewise.be.

Sharing a Dataset with Another User

Not all functionalities are available if you are not the owner of a file:
  • You cannot send this file to the SpineWise portal.
  • You cannot share this file with others.

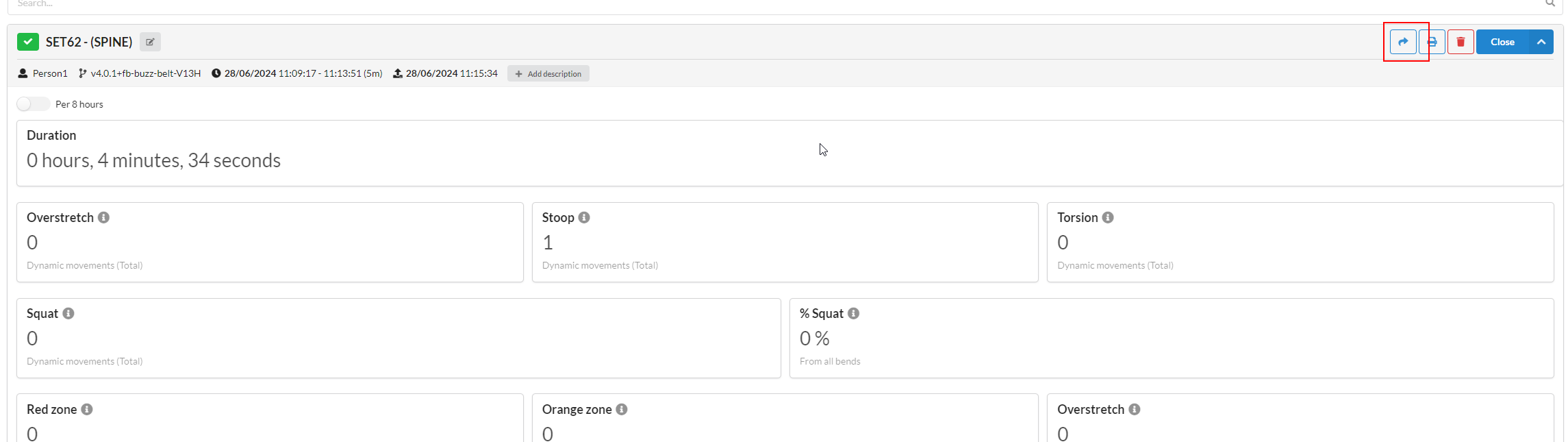

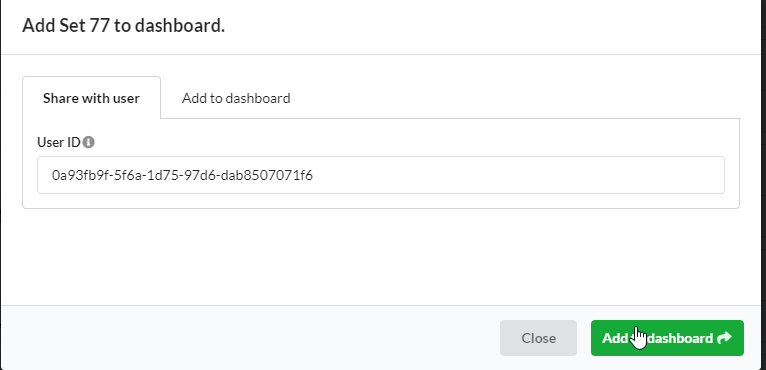

It is possible to share a measurement with another user. This person will then have access to the exact same information added to the measurement, including descriptions and generated graphs.

The sender of the measurement must provide a user "ID" when sharing. The recipient can find this by navigating to the "My Account" tab and copying the code.

Graph Selection
User Sharing
